HVAC In-Duct UV

In-Duct UVC Germicidal Fixtures

In-duct fixtures deliver UVC energy to moving air inside HVAC ducting to disinfect the air as it passes through, and before it reaches, occupied spaces. This fly-by air disinfection is typically used in supply ducting to protect sensitive/high-risk areas of a building. They can also be used in return ducting to reduce microbial load returning to circulation within the building.

DC Series

American Ultraviolet High-output DC Series HVAC UVC germicidal fixtures can be mounted in various configurations for optimum pass-by air decontamination and/or to irradiate cooling coils and drain pans. Lamps and electronics can be accessed from outside the duct or plenum. "Green" low pressure lamps extend inside to span supply ducts and/or cooling coils.

DC Series HVAC air duct system fixtures are offered in two and four-lamp configurations that can be mounted singly, in built-up banks, or in parallel configurations in a variety of locations, including coils, drain pans, ductwork, mixed air plenums and exhaust systems. The DC series conforms to UL Std 1598 and is certified to CSA Std C22.2#250.

American Ultraviolet DC
Series Benefits

  • Improves Indoor Air Quality (IAQ) by serving as a UV-C air sanitizer, reducing bacteria, viruses and mold that either grow or pass through the air handling systems.
  • "Green"lamps contain = 8mg of mercury
  • Two-year guarantee on lamps with only 20% decrease in output over two years
  • Five-year, non-prorated warranty on the ballast
  • Continuously cleans coils, drain pans, plenums and ducts, eliminating costly cleaning programs and the use of harmful chemicals and disinfectants
  • Reduces HVAC energy costs by restoring heat transfer and net cooling capacity
  • Produces no ozone or other secondary contaminants

To learn more about DC Series HVAC UV light disinfection fixtures, including technical specifications, and independent IES Test results, please visit our technical library where you can download and print literature.

HVAC DC Series
HVAC CC Series graph

Intensity Control Rack (ICR) Series

High-output Intensity Control Rack (ICR) Series fixtures from American Ultraviolet are designed specifically for HVAC airstream disinfection applications. They are ideal for large air handling systems in commercial, industrial, healthcare, and institutional buildings. These ready to install framed structures can be easily mounted in duct systems and on coils to provide the desired airstream disinfection from unwanted bacteria, viruses or fungi travelling in the airstream.

ICR Series fixtures not only decontaminate air, but they also use UVC energy to remove biofilms from cooling coils and drain pans. The ICR Series can be mounted within minutes to plenum walls, or to frame assemblies that span supply ducts and/or cooling coils. These fixtures are offered in various lamp configurations and come standard in five different widths (18”, 24”, 36”, 48”, & 60”). Frames can be mounted side by side, or stacked vertically to cover the entire plenum or coil.

Benefits

  • Reduce bacteria, viruses and fungi with one pass through ICR
  • Each system is custom sized to individual duct
  • Installs in minutes; comes with ready assembled frame structure that easily attaches to plenum wall
  • Installation down-stream offers removal or prevention of biofilm build-ups on cooling coil; and restores coil back to optimum heat transfer properties
  • “Green” lamps contain ≤ 8mg of Mercury
  • Exclusive 2-year (17,000 hours) guarantee on high output lamp life
  • No maintenance required, other than changing lamps every 2 years

To learn more about ICR Series fixtures, including technical specifications, please visit our technical library where you can download and print literature.

HVAC ICR Series

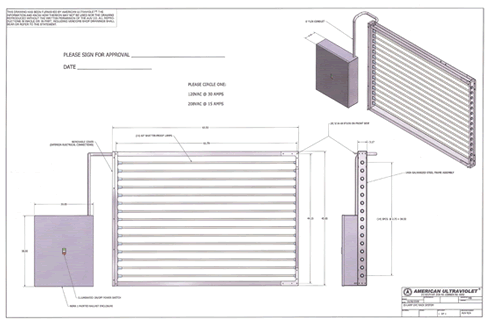

Example of In-Duct disinfection

HVAC ICR example

Standard Features

  • Each assembly includes fully wired and enclosed power supply, electronic ballast(s), frame assembly, lamp holders, and high output lamp(s)
  • “Moisture-Proof” construction incorporates a moisture proof wire lead connector assembly
  • High-output (800ma), green lamps (≤ 8mg mercury)
  • Lamps produce no ozone or other secondary contaminants


Prolonged, direct exposure to UVC light can cause temporary skin redness and eye irritation. American Ultraviolet systems are designed with safety in mind and, when properly installed by a professional contractor, do not allow exposure to UV irradiation and allow for safe operation and maintenance.

None of the American Ultraviolet UVC products detailed above are certified, or approved under any applicable laws, as a medical device, and as such, American Ultraviolet, and its Representatives and Distributors, do not currently intend for them to be used as medical devices anywhere globally. Products have not been evaluated by the FDA.
