Surface Curing


UV Curing Solutions



American Ultraviolet West Inc. (LESCO Division, Torrance, CA) is actively looking for new Representatives and Distributors throughout the country to sell our UV Spot Curing, Chambers and Conveyor lines. If interested, please complete and submit this INQUIRY FORM for consideration.
Specialty Curing Solutions

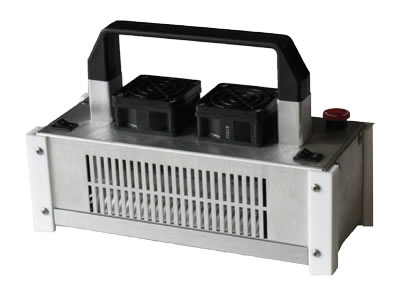

Porta-Cure System

Porta-Cure Handheld systems enable one person to easily cure surfaces and substrates that for one reason or another cannot be brought to UV curing equipment. A few examples include bathtubs, countertops, pool cues, and flooring that needs to touched up. Porta-Cures are also often used in testing laboratories and for new product development. All Porta-Cure systems contain a medium pressure mercury vapor discharge lamp with high efficiency output in the 185-400nm UV cure range. They also feature ozone free lamps; and lamps of various lengths are available for direct interchange to the units.

*Handheld units are also offered in 220V, 50/60Hz configuration

**Optional lightweight electronic power supply measures 7.5" x 10" x 16.25" and weighs approximately 16lbs.

9" and 12" lamp assemblies available. Some configurations require electronic ballast. Consult factory for configuration options.

Porta-Cure

Porta-Cure

Porta-Cure

Porta-Cure

To learn more about the Porta-Cure System, including technical specifications, please visit our technical library where you can download and print literature.

Port-Cure System

Standard Features

  • Lightweight, fan-cooled handheld lamp assemblies
  • Remote power supply with 8' cable to lamp assembly for maximum operational ease and lamp portability.
  • 120V/60Hz power *
  • Low-cost, dependable power supply
Model Total Wattage Arc length Reflector Geometry Power
requirements
Power Supply Weight & Dimensions**
PC1000 1000W 5" NON-FOCUSED 120V/60Hz/12A 50lbs 17"x12"x10"
PC1000F 1000W 5" FOCUSED 120V/60Hz/12A 50lbs 17"x12"x10"
PC1500F 1500W 5" FOCUSED 120V/60Hz/15A 50lbs 17"x12"x10"

Examples of finished products cured with the Porta-Cure:

Examples of finished products cured with the Porta-Cure
